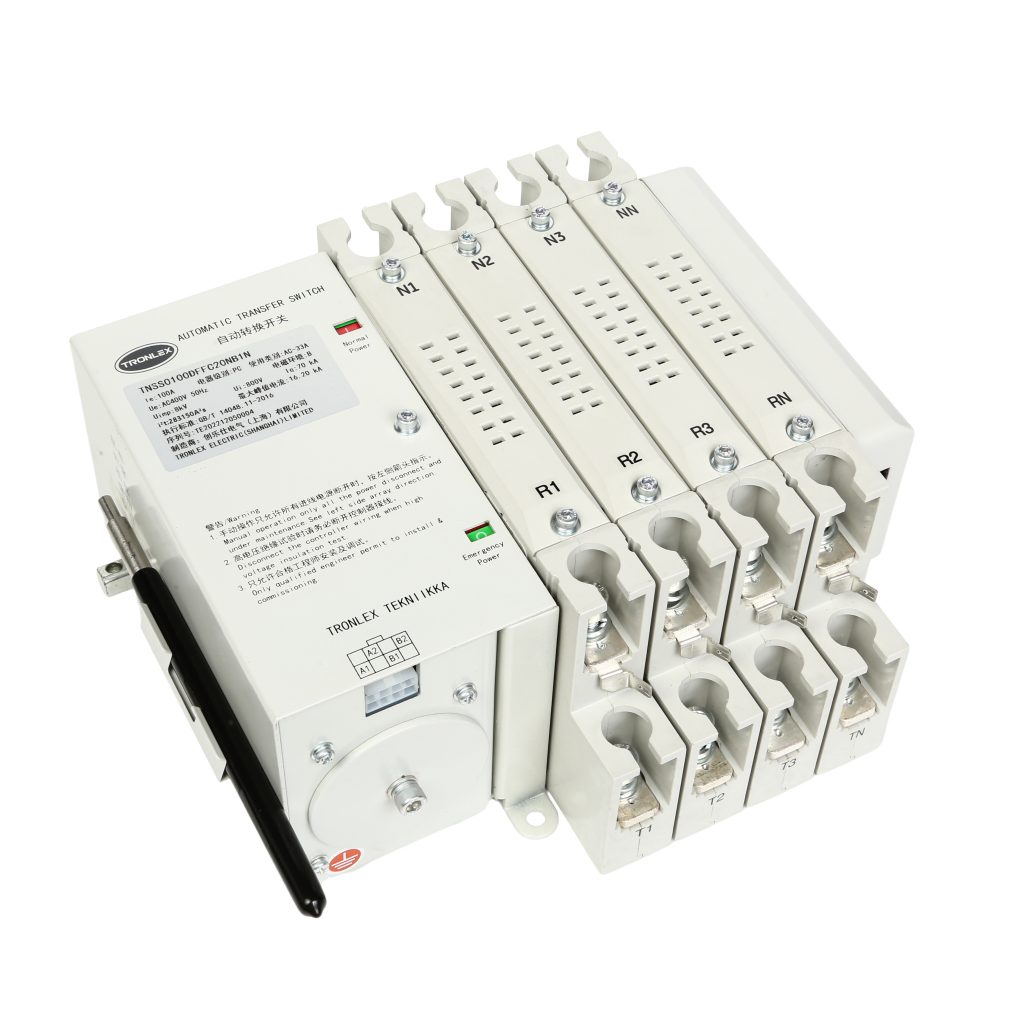

TRONLEX TLSS Series automatic transfer switches(ATS) conver a variety of applications such as is Data Centers, commercial buildings, industry and other electric utility. Its compact design, quick transfer rate, dependability and ease of operation provide reliable power supply and good user experience.
Configurations:
C10 microprocess controller
Scope:
120 – 400 V
Range: 40-630A (Optional: 800 -1250A)
50/60 Hz
2,3 or 4 poles
Key Features:
Standtard: IEC60947-6-1
Load Catagory: AC-33A/33B ,Inductive and mixed load
Rate: ＜100ms
Compact Design, save space and cost
Manual and automatic mode
PC class integrated special structure, built-in double mechanical interlock
Microprocesser
Under-voltage sensing (90% pickup/80% dropout) of the utility source
Voltage and frequency sensing of the generator source (90% voltage/95% frequency pickup)
Time Delay Setting
Indicating LEDs for power availability, switch position and load energized Pushbuttons for test, manual and auto transfer
Diagnostic LED indications in logical one-line configuration All time delays are fixed
Available in open type, IP30~IP54 enclosures. Additional options include
NO/NC Auxiliary contacts (1 each) closed in utility and generator positions
