TRONLEX MV automatic transfer switch(ATS) cover a variety of applications such as is Data Centers, commercial buildings, industry and other electric utility. Its powerful editable logic and fixed logic make it suitable for different applications that need flexible ATS function.
Configurations:

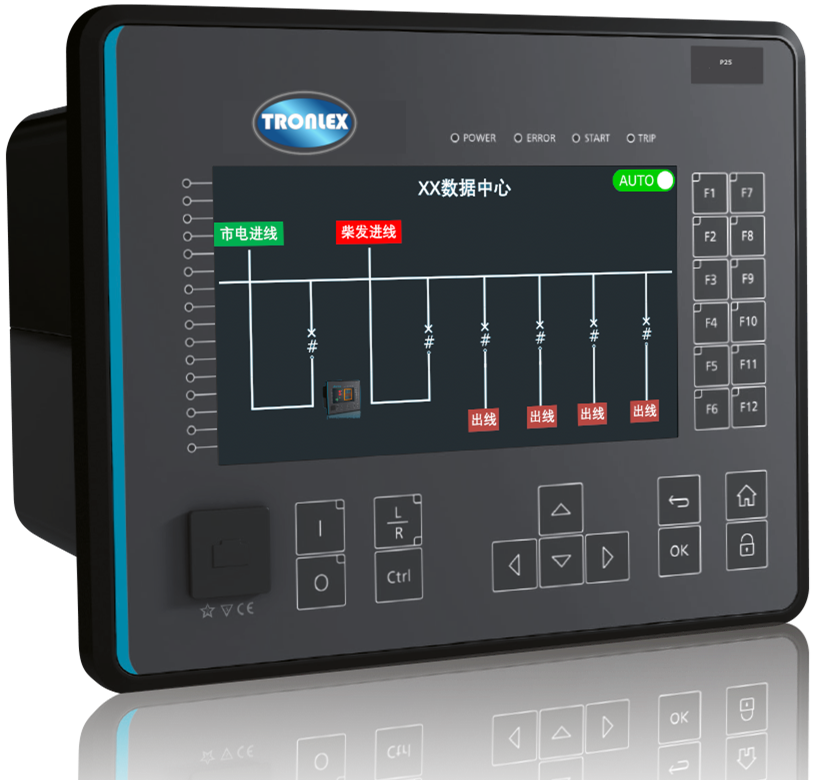

P25 microprocess controller
Scope:
3 – 40.5kV
Range: 630-2000A
50/60 Hz
3 poles
Key Features:
Standtard: IEC298 / IEC60255(EN61000)
Load Catagory: AC-33A/B ,Inductive and mixed load
Transfer time: ＜120ms (Most fast setting)
Manual and automatic mode / Load shift option
Breaker Panel, Control Panel separately or combine
Unique reliable integration system including sensing, logic, HMI
Microprocesser
Under-voltage sensing (90% pickup/80% dropout) of the utility source
Voltage and frequency sensing of the generator source (90% voltage/95% frequency pickup)
Time Delay Setting
Indicating LEDs for power availability, switch position and load energized
Pushbuttons for test, manual and auto transfer
Diagnostic LED indications in logical one-line configuration All time delays are programmable
Transfer Event record
Available include: Communication port (RJ45 RS485 Modbus, IEC103, IEC61850)
