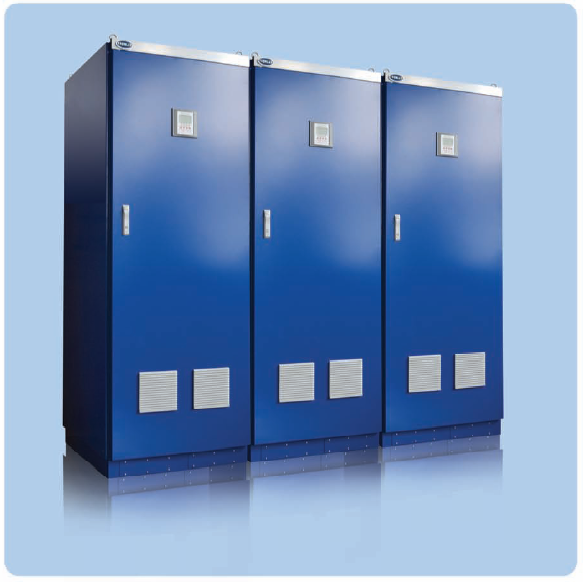

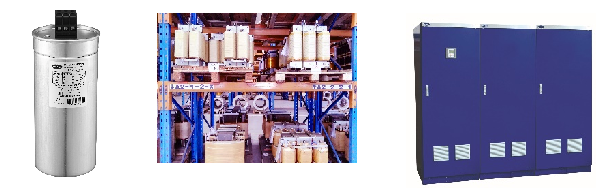

TRONLEX LV Power Factor Correction system consist of the contactor, fuses and capacitors of each step are placed in a separate layer. Due to layer structure it is extremely easy to change, remove and maintain each compensation step. The capacitors are naturally self-healing and are also equipped with an overpressure release device for controlled discharging of internal overpressure in the event of condenser overloading.
Key Features:
TPF100 range from 100-450kVar per cabinet.
MKP full film capacitors technology with long lifecycle.
Thermal switch protect and high linearity for each reactors.
Both available for thyristor or contactor switching
Arc flash and harmonics monitor and protect optional
Standard cabinets for capacities 100 ~ 400kVar and parallel connection
MKP technology (Metalized PP film), self-healing and no liquid impregnate.
Overpressure protection
Reliablity and long lifecycle(good structure and high quality materials)
208~690Vac system25 microprocess controller
