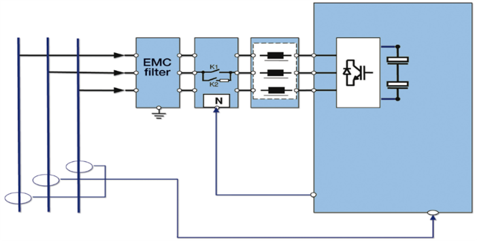

The Tronlex Active Filter System consist of the contactor, fuses and incoming breaker of each cabinet with modular installation. Due to layer structure it is extremely easy to change, remove and maintain each filter modules. Base on the power electronics control technology, measurement technology, Tronlex Active Filter system detect the harmonic components and feedback the negative harmonic current to reduce the harmonic distortion in the network.
The active filter system have wide availability and dynamic response time, easy to select and easy to be extended in future.
Scope:
Nominal Voltage: 400V (690V on request)
Frequency: 50/60Hz
Wire: 3P with or without Neutral
Rated Current: 100-450A
Harmonics reduction: 2-50nd
Rate of harmonic reduction >97%
Response time <1 ms
Expandability up to 8 Active filter units in parallel
Protection class IP 20 according to IEC 529
400 – 680 Vac System
Key Features:
TAF range from 100-450A per cabinet.
400-660Vac 3 wires or 4wires w/o neutral connection.
Multi safety alarm and protect inside.
Multi operation mode including filtering, phase-balance, PFC.
2nd- 50th harmonics filtering.
Electromagnetic Compatibility(EMC) EN 61000-6-2, EN 61000-6-4
Cabinet color cabinet RAL 7035 (gray), base RAL 7022 (dark gray)
