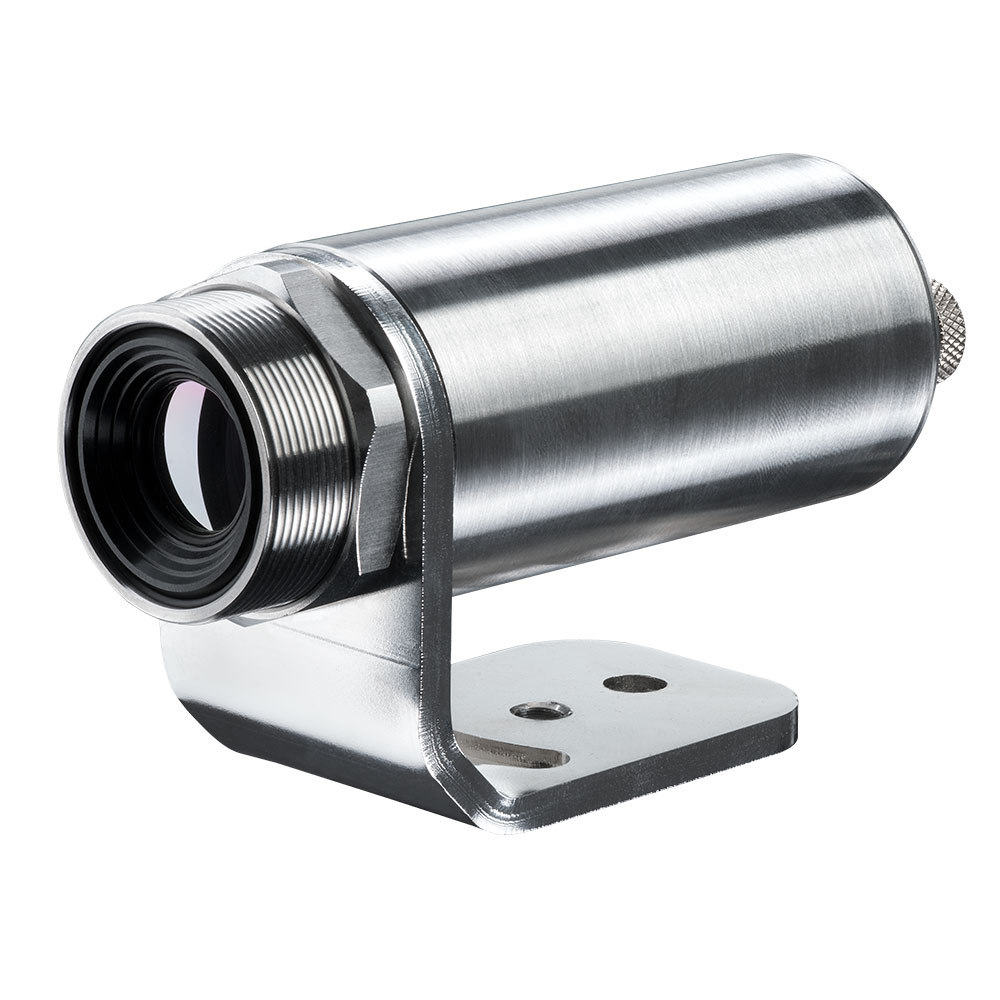

TRONLEX TR-IX80 combines the benefits of infrared cameras and infrared thermometers.
A full 80×80 thermal image eliminates the hunt for the hot spot and tedious positioning required with single spot temperature sensors. The integrated spot finder function will identify the hottest (or coldest) spot in the image and automatically communicate these measurements without an external PC.
A wide range of optics including the new 80° lens equips the Xi 80 to collect and analyze temperature information over a wide target area. The affordable pricing for this unit makes it a realistic alternative to replace existing spot temperature sensors or for OEM applications.
Highlights:
Small sized rugged camera with motorized focus
Distance-to-spot-size ratio up to 190:1
Autonomous operation with automatic spot finderEthernet
Key Features:
Detector: FPA, uncooled (34 µm pitch)
Optical resolution: 80 x 80 pixels
Spectral range: 8 – 14 µm
Temperature ranges:
-20 ℃~ 100℃, 0 ℃~ 250℃
Frame rate: 50 Hz
Optics:
Focus: Manual motor focus
Distance-to-spot ratio: 190:1 (12° optics)
Thermal sensitivity (NETD): 100 mK
System accuracy (at ambient temperature 23 ± 5°C): ±2°C or ±2%, whichever is greater
Interface: USB 2.0 / Ethernet (100 Mbit/s) / PoE / RS485 2) and Direct output/input
