LV Arc Quenching
limit the total arcing time to 5 ms and to minimize or even eliminate the arcing fault thermal and pressure damaging effects
Highlights:
Rated voltage: up to 690 V
Short-circuit withstand (IEC60947-9-1/UL2748): 100 kA for 200 ms, 50 kA for 1 s
BIL: 12 kV
Electric life: 2 operations at 100 kA, 200 ms each
Mechanical life: 100 operations
Total system operating time: 5 ms
Application: Data Centers, Commerical buildings, power plant, oil & chemistry
Infrared Thermal Image
eliminates the hunt for the hot spot and tedious positioning
Highlights:
-20 ℃~ 100℃, 0 ℃~ 250℃
Frame rate: 50 Hz
Distance-to-spot ratio: 190:1 (12° optics)
Optical resolution: 80 x 80 pixels
Application: Data Centers, Commerical buildings, power plant, oil & chemistry

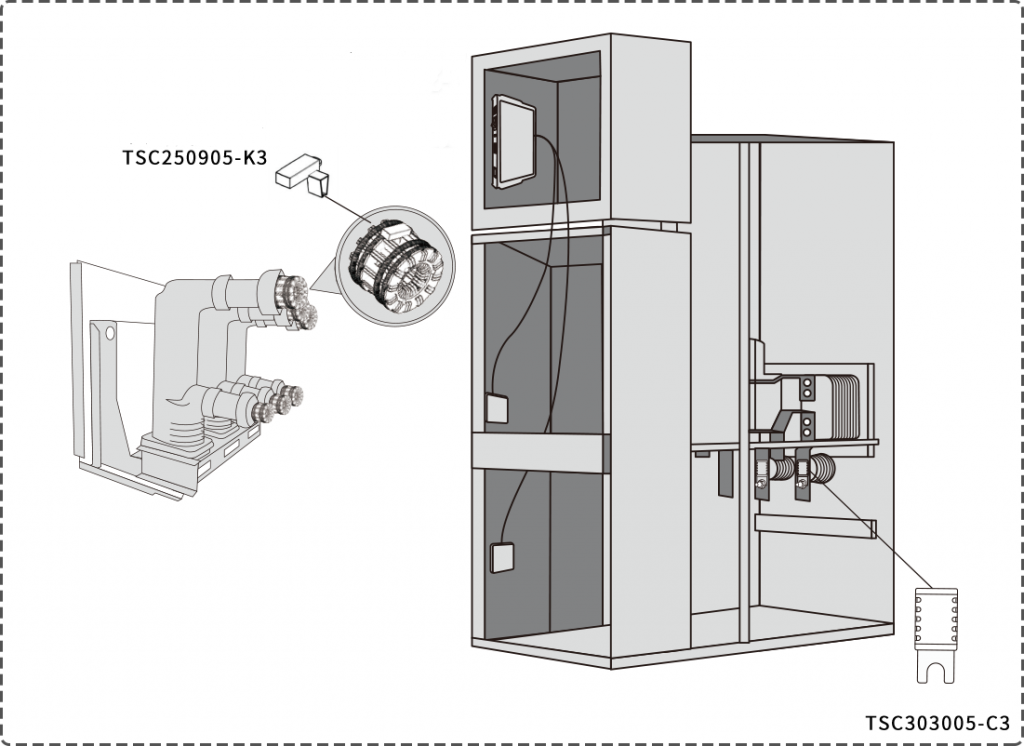

Temperature Monitoring
Passive ultrahigh frequency RFID temperature sensing
Highlights:
Passive wireless temperature measurement
Real-time and effective, stable and reliable
Metal resistance design, able to satisfy the requirements of metal surface temperature measurement
Convenient installation and commissioning
Wide range of temperature measurement, and high precision
Application: Data Centers, Commerical buildings, power plant, oil & chemistry
